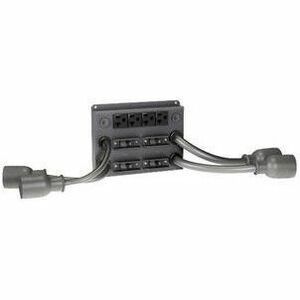

Vertiv Liebert POD PD2 - (4) NEMA 5-30R| (2) 5-20R| (2) L5-20R|UPS Maintenance
Vertiv Liebert POD PD2 - (4) NEMA 5-30R| (2) 5-20R| (2) L5-20R|UPS Maintenance - Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-105
| $481.41 | Retail $600.00 |
- Power output distribution unit with UPS maintenance bypass feature
- Avoid initiating unnecessary downtimes while conducting UPS maintenance
- Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
- Output: Four (4) NEMA 5-30R, Two (2) NEMA 5-20R, Two (2) NEMA L5-20R| Max Current: 60A
- Input: Hardwire 4-wire (2PH+N+G)
By:
Liebert
Manufacturer:
Vertiv
Product ID:
61456
Item:
PD2-105
UPC Code:
813829010491
Our Part #
CT6962
Condition
New
$481.41EA
$600.00
$600.00
Availability
Only 68 Left In Stock
Product description
Vertiv Liebert POD PD2 - (4) NEMA 5-30R| (2) 5-20R| (2) L5-20R|UPS Maintenance - Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-105
Hardwire 4-wire (2PH+N+G) Input Connector | 60A|POD for GXT4 8-10kVA models| PD2-105
Specifications
Plug/Connector Detail
1 x Hard Wire 4-wire (2PH+N+G)
Receptacle Detail
4 x NEMA 5-15R/20R
Receptacle Detail
2 x NEMA L5-30R
Receptacle Detail
2 x NEMA L5-20R
UPC Alternates
813829010491
Additional Information
Power distribution
Brand Name
Liebert
Compatibility
Liebert UPS:
- GXT3-8000RT208
- GXT3-10000RT208
Height
5.7"
Manufacturer
Vertiv
Manufacturer Part Number
PD2-105
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
The Vertiv Liebert POD PD2-105 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models it is a POD that allows you to conduct UPS maintenance and replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-105 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA 5-30R two NEMA 5-20R and NEMA L5-20R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 60A.
Plug/Connector Type
Hard Wire 4-wire (2PH+N+G)
Product Name
PD2-105 8-Outlets PDU
Product Type
PDU
Receptacle Type
NEMA L5-20R
Receptacle Type
NEMA 5-15R/20R
Receptacle Type
NEMA L5-30R
Weight (Approximate)
4.40 lb
Width
7.4"
